Engineering Carbon Fiber Series

PA6-CF Nylon Carbon Fiber Filament

High-strength engineering filament for functional parts, jigs, fixtures and industrial prototypes.

Diameter: 1.75 mm
Net Weight: 1 kg
Tolerance: ±0.02 mm
MOQ: 250 kg
OEM Label: Available
Trade Terms: EXW / FOB / DDP
Request PA6-CF Quote

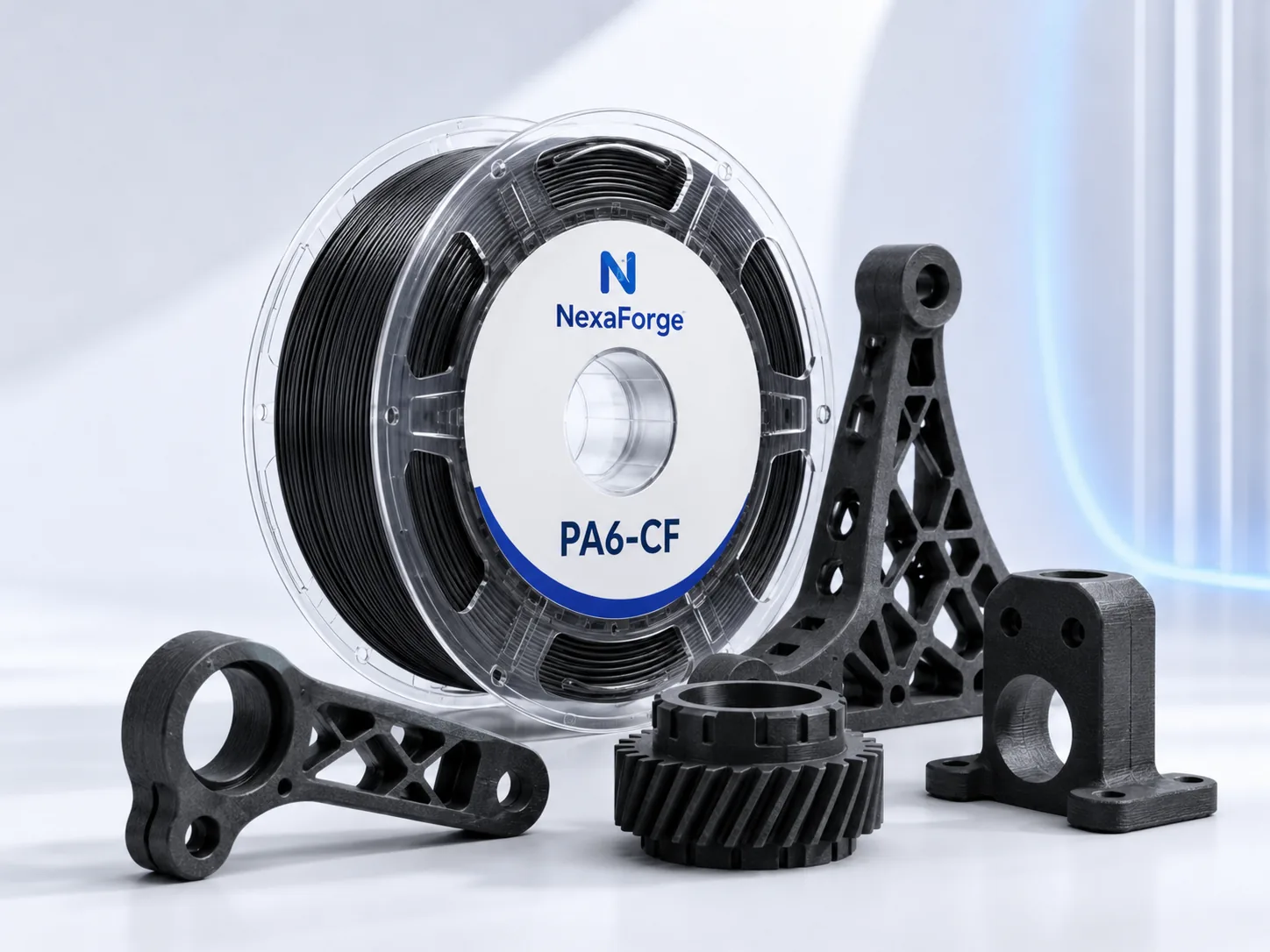

PA6-CF Nylon Carbon Fiber Filament spool and printed application

Technical Specifications

Diameter1.75 mm
Tolerance±0.02 mm
Net weight1 kg
Printing temperature260–290°C
Bed temperature80–110°C
Drying recommendation80°C for 8–12 hours before printing
Spool dimensionsApprox. 198 mm diameter × 68 mm width
PackagingVacuum sealed with desiccant
Recommended nozzleHardened steel, 0.4–0.6 mm
AMS compatibilityMaterial-specific; external spool recommended for many systems

Technical Data

PA6-CF Nylon Carbon Fiber Filament Technical Specifications

NexaForge PA6-CF is an engineering-grade nylon carbon fiber reinforced filament developed for applications requiring high stiffness, dimensional stability and heat resistance.

PropertyTest MethodTypical Value
Material—PA6 + Carbon Fiber Reinforcement
DensityASTM D7921.175 g/cm³
Melting TemperatureDSC200–220°C
Tensile StrengthASTM D63866 MPa
Elongation at BreakASTM D638180%
Flexural StrengthASTM D79090 MPa
Flexural ModulusASTM D7902573 MPa
Notched Impact StrengthASTM D25631 J/m
ShrinkageASTM D9550.5–0.8%
Vicat Softening PointInternal Data170°C
Important data qualificationThe above values are typical OEM material data from PA6-CF compound testing. Printed part performance depends on printer configuration, drying condition, nozzle type, print orientation and post-processing.

Typical Applications

Jigs and fixtures
Robot parts
Automotive prototypes
Functional brackets
Tooling
Mechanical components

Practical Printing Advice

  • Use a hardened steel nozzle; carbon fiber can quickly wear standard brass nozzles.
  • Dry at 80°C for 8–12 hours before printing and keep the material in a dry box during long jobs.
  • An enclosure is recommended for stable layer bonding and reduced warping.

Product Advantages

  • Stable ±0.02 mm diameter tolerance
  • Neat winding and consistent feeding
  • Vacuum sealed with desiccant
  • Low-moisture export packaging
  • Repeat-order color and batch communication
  • Private label and barcode support

Wholesale Information

MOQ250 kg
Mixed colorsAvailable
Mixed materialsAvailable subject to packing plan
OEM labelAvailable from 500 rolls (+US$0.10/roll)
Custom packagingFrom 1000 rolls (+US$0.20/roll)
Trade termsEXW / FOB / DDP

Product FAQ

Does PA6-CF require drying?

Yes. PA6-CF is moisture sensitive and should be dried before printing, then kept in a dry environment during use.

Can PA6-CF be used in AMS?

Compatibility depends on the feeder design and abrasive-material support. An external spool or compatible engineering-material feeder is often recommended.

What nozzle should I use?

Use a hardened steel or similarly wear-resistant nozzle. A 0.4–0.6 mm diameter is commonly recommended.

Can you provide private-label packaging?

Yes. OEM labels start from 500 rolls (+US$0.10/roll). Custom packaging starts from 1000 rolls (+US$0.20/roll). Neutral packaging is free.

What is the minimum order quantity?

The standard wholesale MOQ starts from 250 kg.

Related Buyer Guides

PA6-CF Supplier Guide →PA6-CF Printing Guide →OEM Private Label Filament Guide →

Downloads

Technical Documents

SDS Safety Data Sheet

A PA6-CF-specific safety data sheet will be added after final formulation and compliance review.

In preparation
